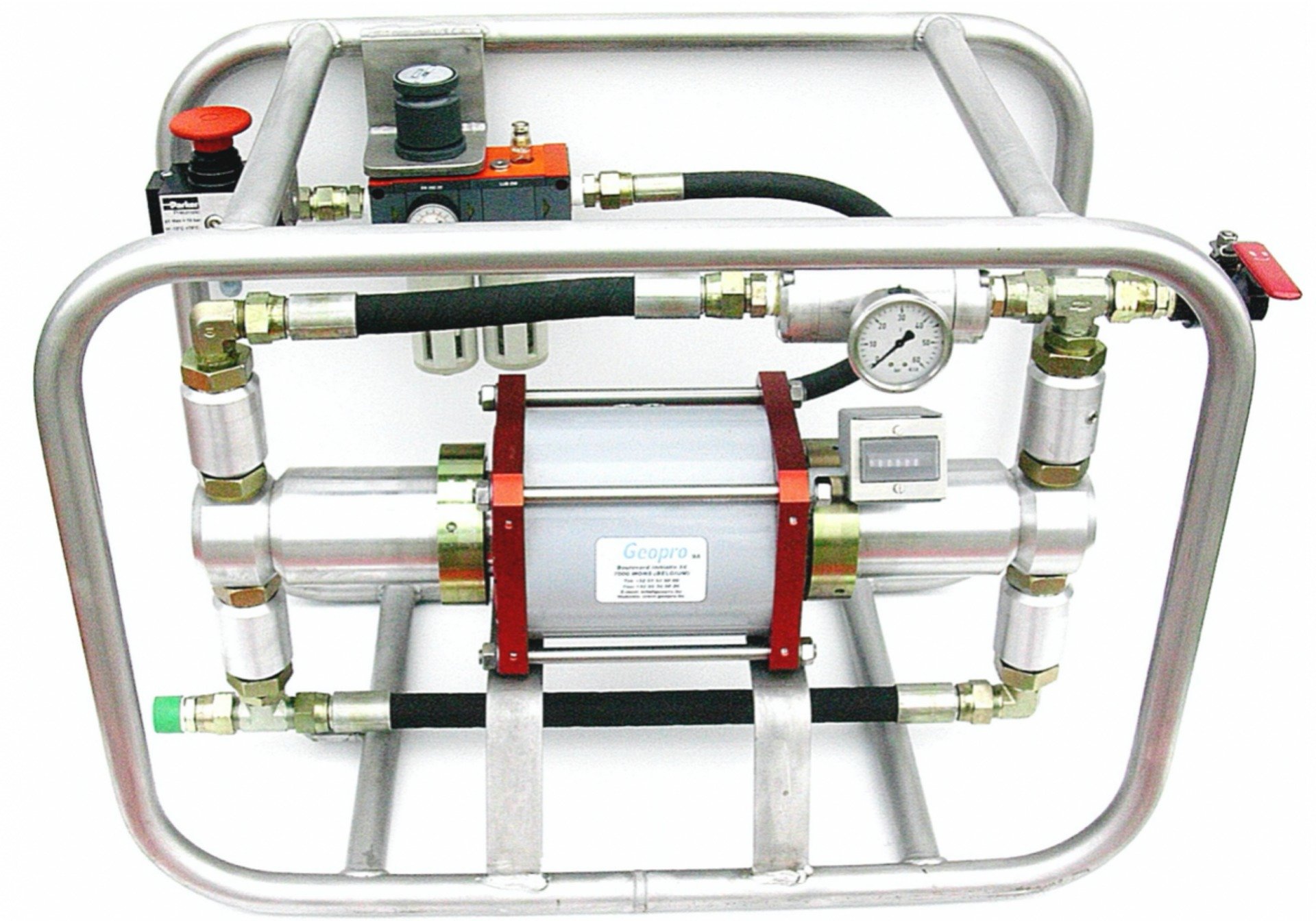

PGP 35-5 Portable Grout pump
PGP 35-5 Portable Grout pump
The PGP35-5 grout pump, double acting motor air-driven, allows the grouting under pressure of different fluids like water, cement slurry or bentonite. It operates on the simple but efficient principle of an automatic reciprocating differential area piston. A relatively large air-operated piston is connected to a smaller high-pressure piston to convert compressed air flow into fluid flow at high pressure.
The standard ratio of 5 multiplies by the air inlet pressure gives an output pressure up to 500 psi (35 bar)*.

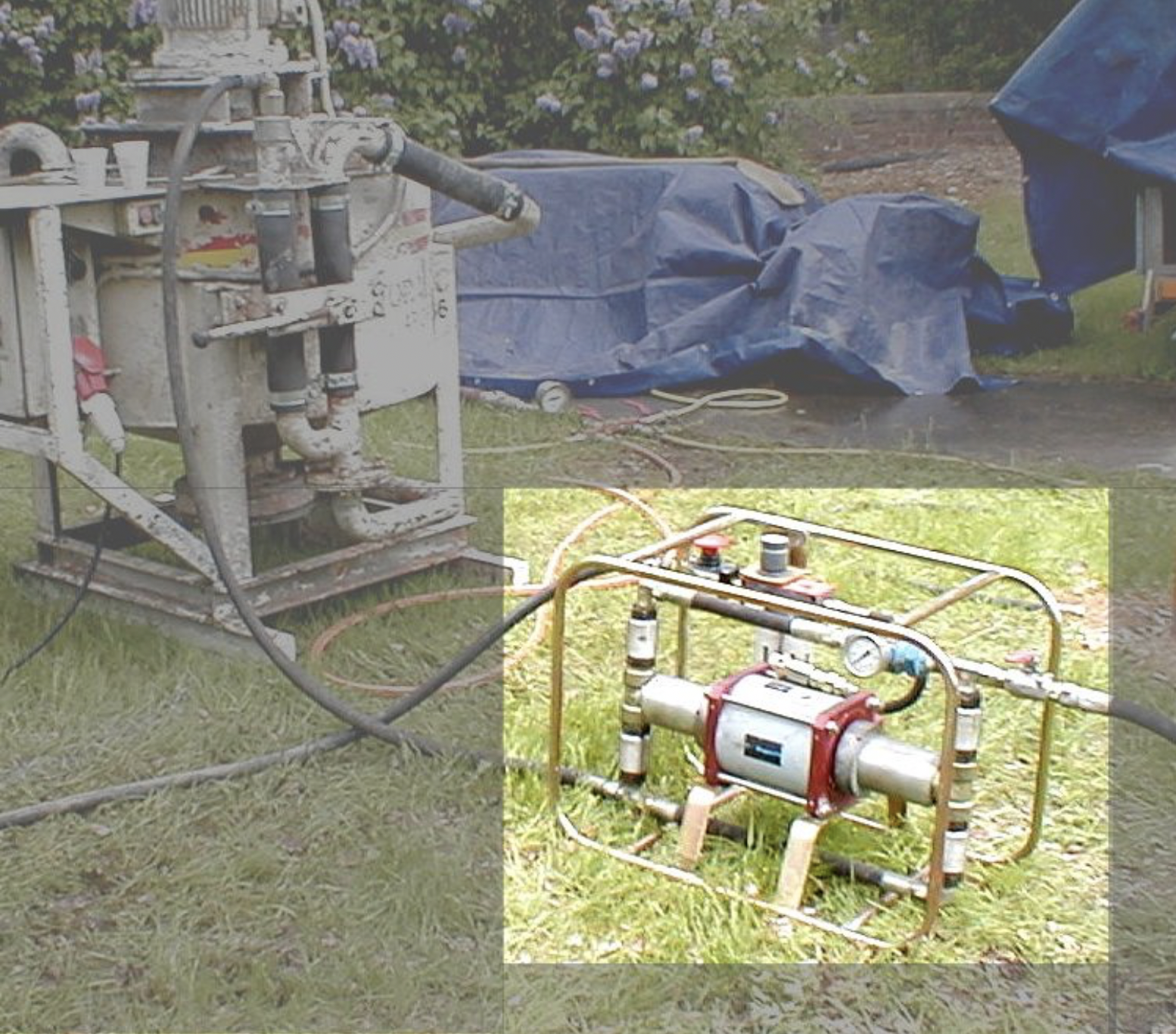

Its reduced weight and size make it very suitable for narrow space worksite avoiding heavy equipment.
(*) The option PGP70-10 pump is available under request : 1000psi ( 70 bar ) , 6 gallons (35 liters) per minute.
Main specifications
| Grout pressure | 0-35 bar (0-500psi) |
| Flow rate | 45l/mn |
| Air cylinder diameter | Ø 160 mm |
| Fluid cylinder diameter | Ø 70 mm |
| Suitable fluids | Water, bentonite mud, cement slurry |
| Valves | Ball type |
| Dimensions | 740 x 540 x 440 mm |
| Pump skid assembly weight | 38kg |
| Air inlet assembly weight | 1/2" BSP |
| Fluid inlet thread | 3/4" BSP |
| Fluid outlet thread | 3/4" BSP |
| Air consumption | 3.0 m3/min (16 cfm) |
| Pumped volumen per cycle | 0,4 liters |

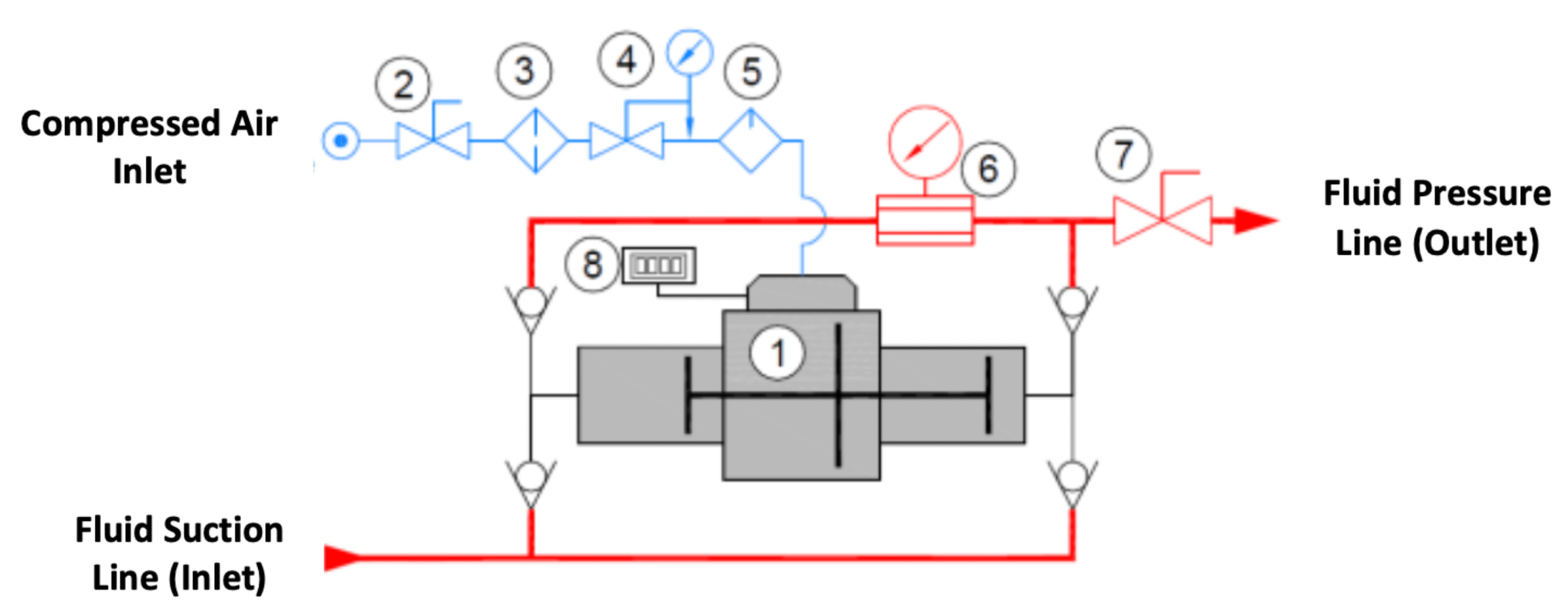

Principle sketch / components
1 - Air driven pump
2 - « Monostable » valve
3 - Air Filter
4 - Air pressure regulator
5 - Air line-oiler
6 - Pressure gauge protector
7 - Shut-off-Valve
8 - Pulse counter
