Spare parts

Spare parts

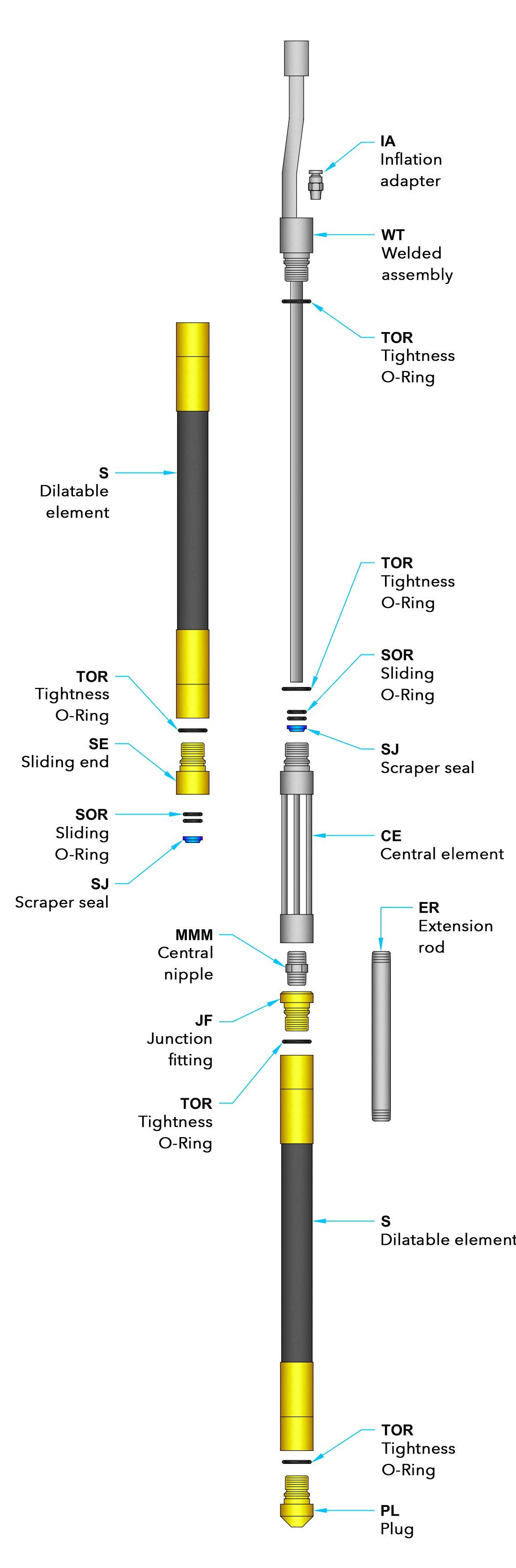

Packers spare parts ø 28 and ø 30 mm

Packer parts order references

Dilatable element Ø 28 Ø 30
L 300 28 S 300 30 S 300
L 500 28 S 500 30 S 500
L 1000 28 S 1000 30 S 1000
Special length 28 S "length" 30 S "length"
Parts Ø 28 Ø 30
WT L 300 28 WT 300 30 WT 300
WT L 500 28 WT 500 30 WT 500
WT L 1000 28 WT 1000 30 WT 1000
WT special length 28 WT "length" 30 WT "length"
SE 28 SE 30 SE
CE (pour IZ 340 mm) 28 CE 340 30 CE 340
JF 28 JF 30 JF
PL 28 PL 30 PL
MMM MMM 28 MMM 30
ER (for IZ 500 mm) 28 ER 500 30 ER 500
28 ER 1000 30 ER 1000
ER (tube) Tube 3/8" Sch.40 Tube 3/8" Sch.40
TOR 28 TOR (Ø 20,35 x 1,78) 30 TOR (Ø 20,35 x 1,78)
SOR 28 SOR (Ø 10,82 x 1,78) 30 SOR (Ø 10,82 x 1,78)
SJ 28 SJ 30 SJ
IA IA 18 "quick couplinge" IA 18 "quick coupling"

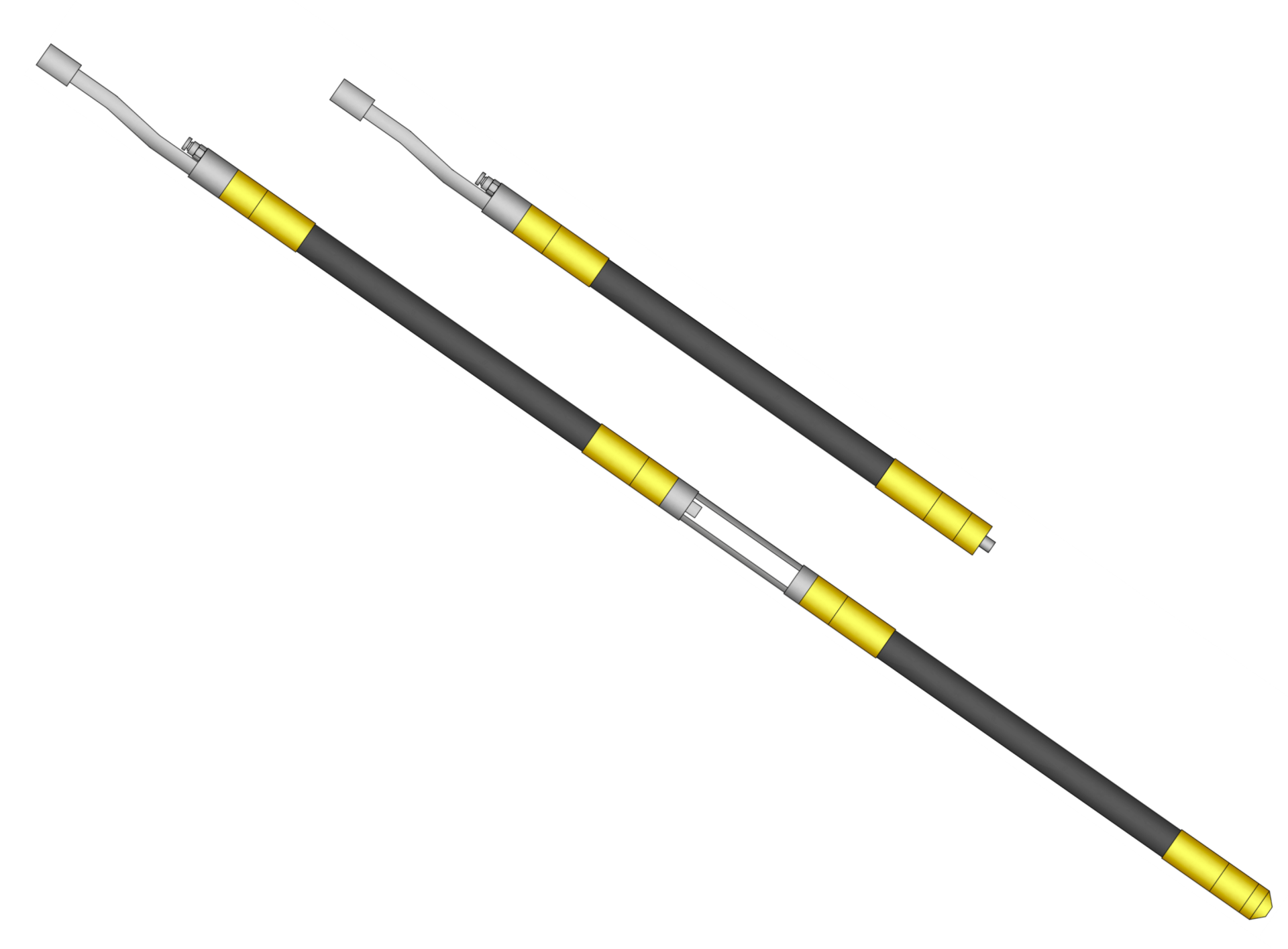

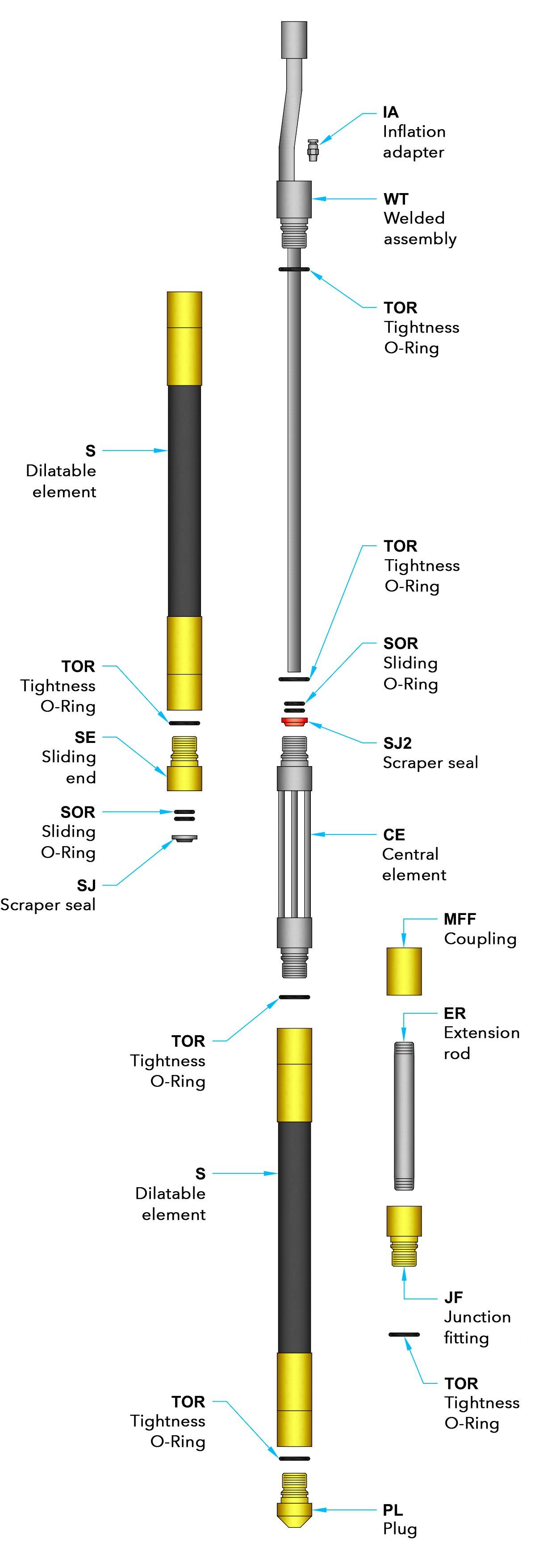

Packers spare parts ø 42

Packer parts order references

Dilatable element Ø 42
L 300 42 S 300
L 500 42 S 500
L 1000 42 S 1000
Special length 42 S "length"
Part Ø 42
WT L 300 42 WT 300
WT L 500 42 WT 500
WT L 1000 42 WT 1000
WT special length 42 WT "length"
SE 42 SE
CE 350 42 CE 350
CE 500 42 CE 500
JF 42 JF
PL 42 PL
MFF MFF 42
ER (IZ 1000) 42 ER 1000
ER (tube) Tube 1" Sch.40
TOR 42 TOR (Ø 31,47 x 1,78)
SOR 42 SOR (Ø 18,72 x 2,62)
SJ 42 SJ
SJ2 42 SJ2
IA IA 18 "quick coupling"
RIA RIA 18 "screw fitting"

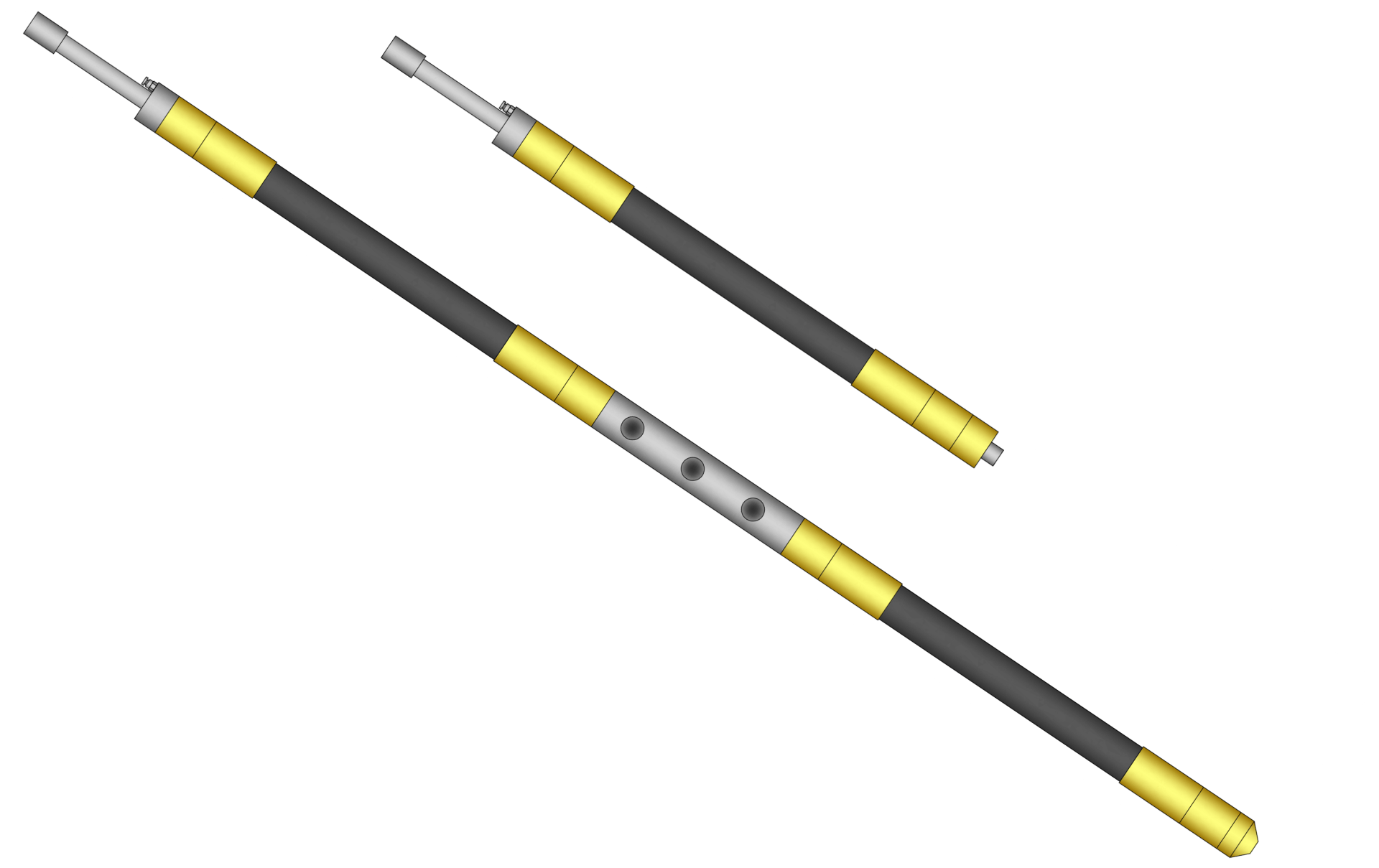

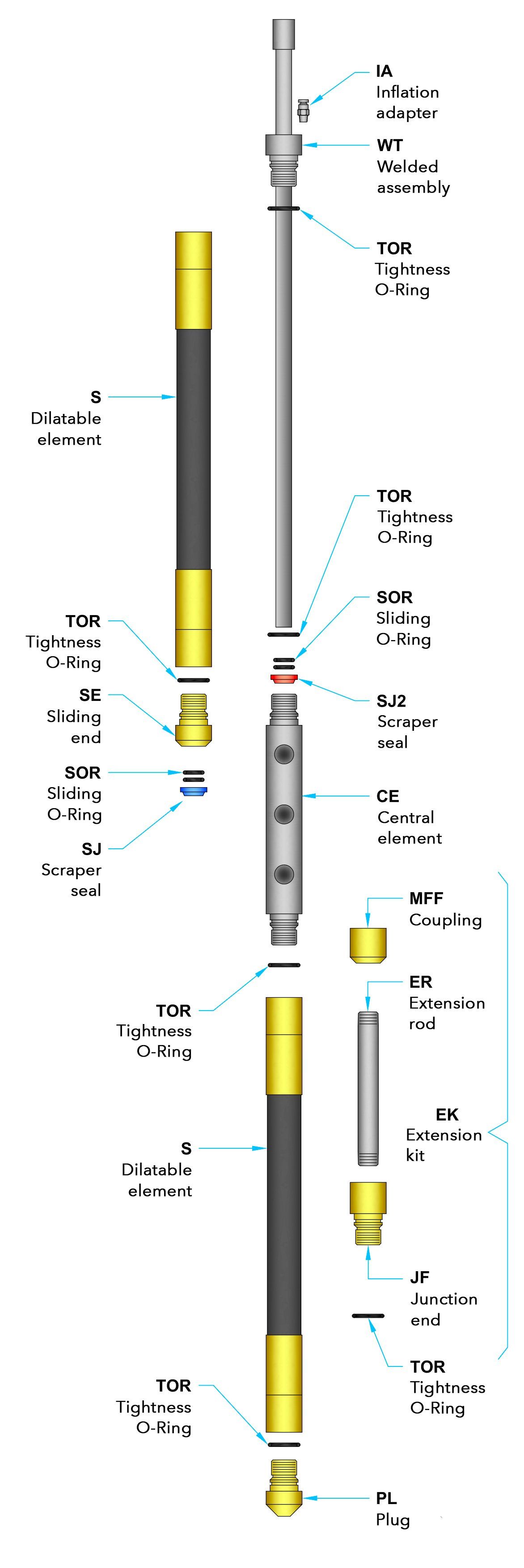

Packers spare parts ø 56 to ø 102 mm

Packer parts order references

Dilatable element Ø 56 Ø 72 Ø 85 Ø 102
L 500 56 S 500 72 S 500 85 S 500 102 S 500
L 1000 56 S 1000 72 S 1000 85 S 1000 102 S 1000
Special length 56 S "length" 72 S "length" 85 S "length" 102 S "length"
Part Ø 56 Ø 72 Ø 85 Ø 102
WT L 500 56 WT 500 72 WT 500 85 WT 500 102 WT 500
WT L 1000 56 WT 1000 72 WT 1000 85 WT 1000 102 WT 1000
WT special length 56 WT "length" 72 WT "length" 85 WT "length" 102 WT "length"
SE 56 SE 72 SE 85 SE 102 SE
CE (for IZ 500 mm) 56 CE 500 72 CE 500 85 CE 500 102 CE 500
CE (for IZ 1000 mm) 56 CE 1000 72 CE 1000 85 CE 1000 102 CE 1000
JF 56 JF 72 JF 85 JF 102 JF
PL 56 PL 72 PL 85 PL 102 PL
ER (for IZ 1000 mm) 56 ER 1000 72 ER 1000 85 ER 1000 102 ER 1000
ER (tube) Tube 3/4" Sch.40 Tube 1"1/4 Sch.40 Tube 1"1/4 Sch.40 Tube 2" Sch.40
EK (for IZ 500 mm) 56 EK 500 72 EK 500 85 EK 500 102 EK 500
EK (for IZ 1000 mm) 56 EK 1000 72 EK 1000 85 EK 1000 102 EK 1000
MFF MFF34 MFF114 MFF114 MFF2
CP (for SP 500) 56 CP 500 72 CP 500 85 CP 500 102 CP 500
CP (for SP 1000) 56 CP 1000 72 CP 1000 85 CP 1000 102 CP 1000
CP special length 56 CP "length" 72 CP "length" 85 CP "length" 102 CP "length"
TOR 56 TOR (Ø 40,94 x 2,62) 72 TOR (Ø 56,82 x 2,62) 85 TOR (Ø 72,69 x 2,62) 102 TOR (Ø 82,22 x 2,62)
SOR 56 SOR (Ø 26,65 x 2,62) 72 SOR (Ø 40,94 x 2,62) 85 SOR (Ø 40,94 x 2,62) 102 SOR (Ø 59,92 x 3,53)
SJ 56 SJ 72,85 SJ 72,85 SJ 102 SJ
SJ2 56 SJ2 72,85 SJ2 72,85 SJ2 102 SJ2
IA IA 18 "quick coupling" IA 18 "quick coupling" IA 18 "quick coupling" IA 18 "quick coupling"

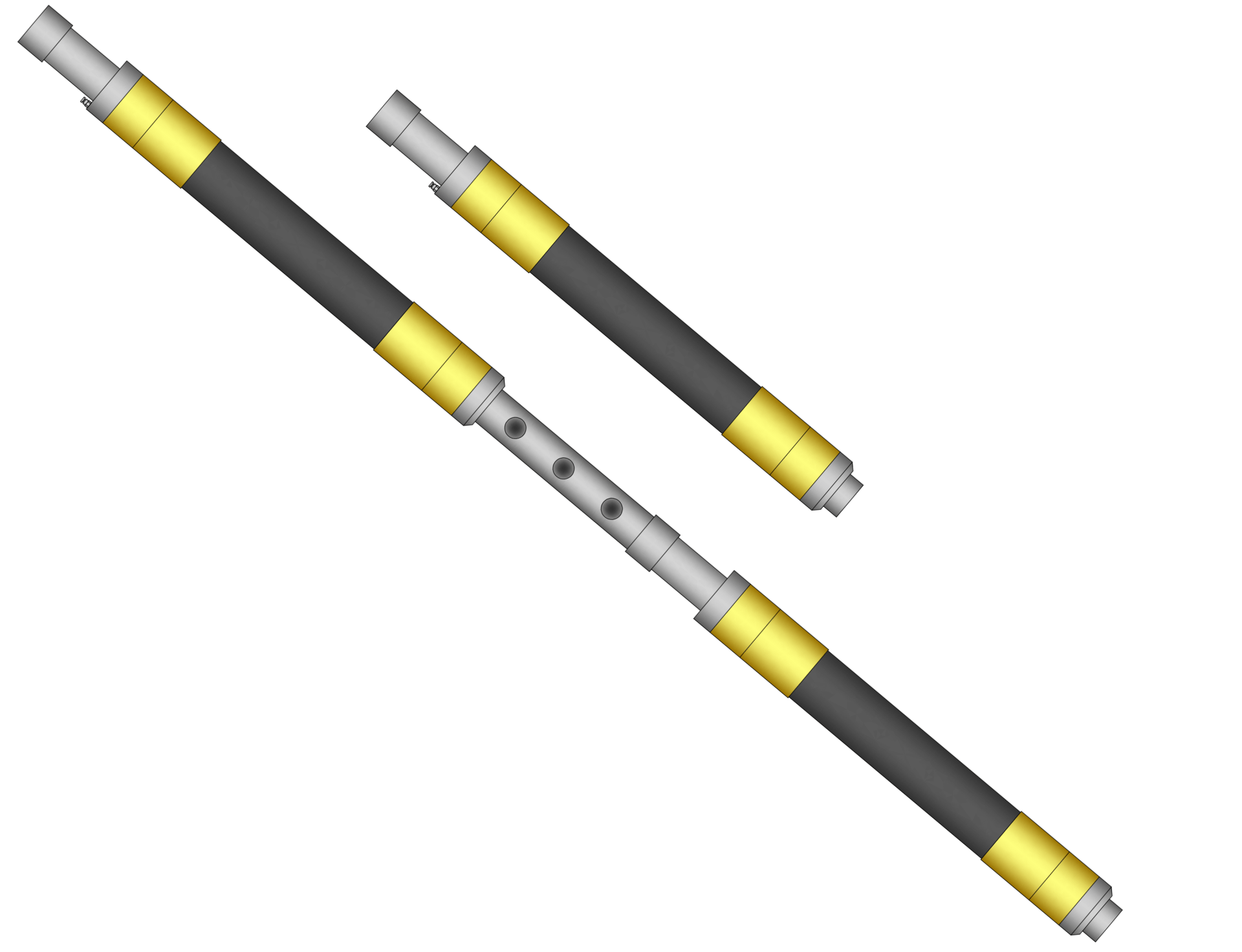

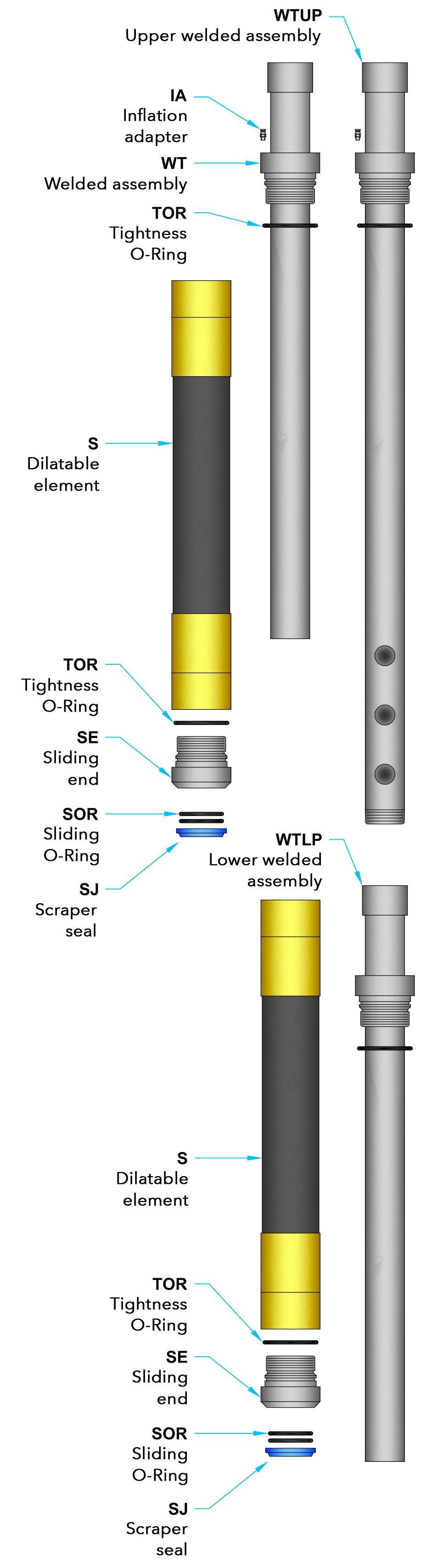

Packers spare parts ø 130 and ø 170 mm

Packer parts order references

Dilatable element Ø 130 Ø 170
L 500 130 S 500 170 S 500
L 1000 130 S 1000 170 S 1000
Special length Consult us Consult us
Part Ø 130 Ø 170
WT L 500 130 WT 500 170 WT 500
WT L 1000 130 WT 1000 170 WT 1000
WTUP L 500 130 WTUP L 500 170 WTUP L 500
WTUP L 1000 130 WTUP L 1000 170 WTUP L 1000
WTLP L 500 130WTLP L 500 170 WTLP L 500
WTLP L 1000 130 WTLP L 1000 170 WTLP L 1000
WT special length Consult us Consult us
SE 130 SE 170 SE
PL 130 PL 170 PL
TOR 130 TOR (Ø 104,14 x 5,33) 170 TOR (Ø 139,07 x 6,99)
SOR 130 SOR (Ø 88,27 x 5,33) 170 SOR (Ø 88,27 x 5,33)
SJ 130 SJ 170 SJ
IA IA 14 "quick coupling" IA 14 "quick coupling"
