Inflation Pumps
Inflation Pumps
Inflation hand pump
Max. Output pressure :
100 bar
Weight :
9,5 Kg
Tank volum :
6 litres
Piston stroke :
325 mm
Plonger :
10 mm
Pressurized fluid : Water
The

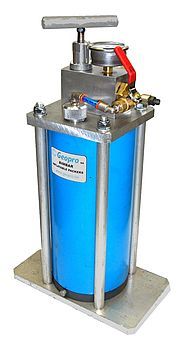

VHP100 pump is particularly well adapted to the inflation of our packers or to any other application requiring a setting under water pressure.
Entirely realized out of plastic materials and aluminium, the VHP100 pump does not require any maintenance in particular and is not sensitive to the problem of corrosion often encountered on the working sites.
P160 pump for packers inflation with water
Geopro supplies a large range of air driven pumps. Two pump ratios are available from ratio 10 for output pressure of 70 bar/1025 psi and ratio 20 for a maximum output pressure of 140 bar/2000 psi. (other ratios upon request)
The output pressure is related to the pump ratio multiplied by the air inlet pressure.
Our pump ratio 10 is especially well adapted to the inflation of our inflatable packers.
They are also available in single or double acting configuration.
| Single acting | Double acting | |||
|---|---|---|---|---|
| Pump Type | Ratio | Max. Pressure (bar/psi) | Flow max. (l/min) | Flow max. (l/min) |
| P160-10 | 10 | 70 bar / 1025 | 26,3 l/min | 50 l/min |
| P160-20 | 20 | 140 bar / 2100 | 13,2 l/min | 25 l/min |
